01. Site Requirement
We review roof area, location, coverage need, height, access and water outlet requirement.
Roof Shed Installation in Kolkata · Up to 1000 Sq Ft

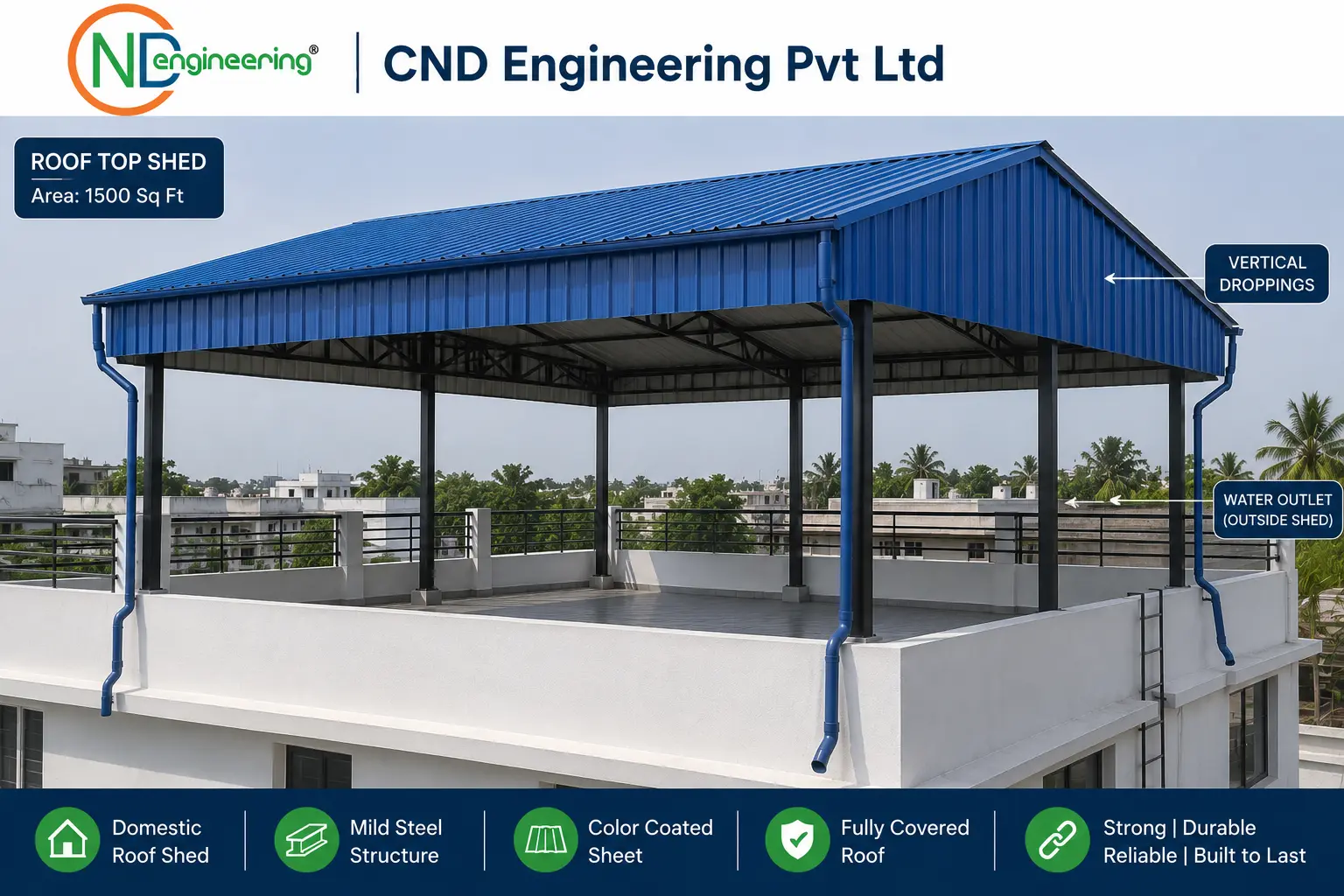

Roof Shed Installation with Mild Steel Structure and PPGL Sheet
CND Engineering Pvt Ltd provides custom roof shed and rooftop shed installation for residential, commercial and industrial properties requiring durable coverage, drainage planning, vertical droppings and clean architectural finishing.
₹140/sq ftRoof sheet area
₹100/sq ftVertical cladding
₹1,47,000Approx roof budget*
1000 Sq FtInstallation Range
0.45 mmPPGL Roof Sheet
MS FrameDurable Structure
Built for durability, drainage and rooftop functionality.
This roof shed solution is designed for rooftops and covered spaces requiring practical rainwater discharge, weather protection, side protection and long-term structural reliability.
⌂
Rooftop Shed Design
Optimized for terrace coverage with clear internal usable space, proper edge finishing and practical installation access.
▥
Color Coated Sheet
0.45 mm PPGL sheet is considered for weather resistance, clean appearance and reliable roof coverage.
↧
Outside Water Outlet
Water outlet pipes are positioned outside the shed line for proper drainage and cleaner usability.
▮
Vertical Droppings
Vertical cladding or droppings help protect exposed side edges from wind-driven rain.
▱
Mild Steel Structure
SHS sections with truss, purlin and base plate details provide dependable structural support.
✓
Turnkey Execution
Reference costing includes materials and labour. GST and site-specific requirements are extra.
Approximate Total Budget
₹1,47,000/-
For roof shed installation up to 1000 sq ft. Cost inclusive of materials and labour. GST extra.
Discuss ProjectRoof Sheet Area₹140/- per sq ft
Vertical Cladding₹100/- per sq ft
ColumnSHS 60 × 60 × 2.6
TrussSHS 40 × 40 × 2.6, SHS 25 × 25 × 1.6
PurlinSHS 40 × 40 × 2
Base Plate8 mm
Roof Sheet0.45 mm PPGL Sheet
Roof Shed Installation for Homes, Commercial Buildings and Industrial Premises
A roof shed should not be treated only as a sheet covering. Good roof shed work needs proper support spacing, base plate fixing, truss alignment, water outlet planning, edge finishing and sheet fixing sequence. CND Engineering plans roof sheds for practical use, long-term protection and clean visual appearance.
The solution is useful for terrace coverage, rooftop utility areas, parking shade, loading shade, equipment protection, small storage zones and weather-protected work areas.
Core Roof Shed Services
- Roof shed installation in Kolkata
- MS rooftop shed structure fabrication
- PPGL color coated sheet fixing
- Vertical cladding and droppings
- Outside water outlet and drainage planning
- Terrace shed and commercial roof coverage
- Project-specific quotation and execution support
Structured process for roof shed execution
A systematic process helps finalize roof area, sheet line, water drainage and installation scope before work starts.
02. Material Planning
MS structure, truss, purlin, base plate, PPGL sheet and cladding scope are considered.
03. Cost Guidance
Roof sheet area, vertical cladding and site-specific scope are aligned for quotation.
04. Installation
Fabrication, sheet fixing, cladding, outlet placement and finishing are coordinated.
Roof Shed Installation in Kolkata and West Bengal
CND Engineering supports roof shed, rooftop shed, MS structure, PPGL roofing and vertical cladding requirements across Kolkata and major locations in West Bengal.
KolkataHowrahHooghlyNorth 24 ParganasSouth 24 ParganasHaldiaDurgapurKharagpur
Frequently asked questions about roof shed installation
What is the approximate roof shed cost for 1000 sq ft?
The reference budget is ₹1,47,000 for roof shed installation up to 1000 sq ft. Roof sheet area is shown at ₹140 per sq ft and vertical cladding at ₹100 per sq ft. GST and project-specific requirements are extra.
What material is used for this roof shed?
The reference specification includes mild steel SHS sections, truss and purlin members, 8 mm base plate and 0.45 mm PPGL color coated roof sheet.
What details are needed for a quotation?
Share roof area, site location, required coverage, vertical cladding requirement, water outlet arrangement, installation access and timeline.
Which locations does CND Engineering serve?
CND Engineering serves Kolkata, Howrah, Hooghly, North 24 Parganas, South 24 Parganas, Haldia, Durgapur, Kharagpur and other locations in West Bengal and Eastern India.
Request a site-based roof shed quotation.
Share your roof size, location and requirement. Our team will guide you with design, material planning and installation cost.
